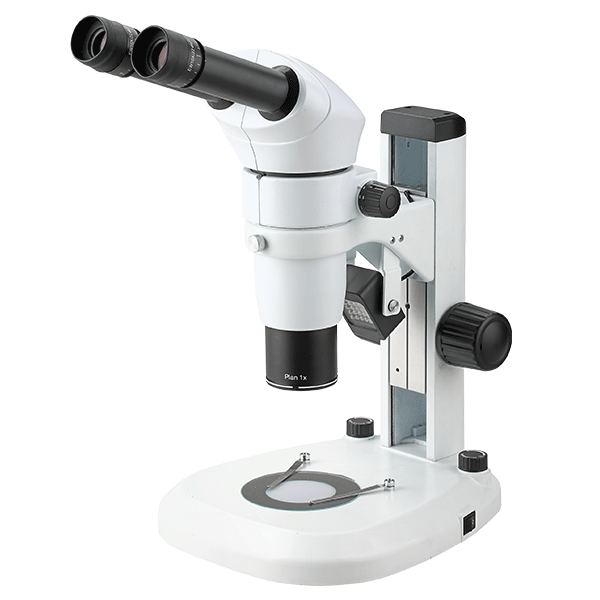

Model: NSZ-810
Accessories: Standard/Optical
Features:
(1) Unrivaled optical performance with infinity parallel optical system.
(2) Providing even illumination and 6000 hours life expectancy with ultra-thin LED illumination for both incident and transmitted light.
(3) With complete accessories, it can be used widely for scientific research, industry, biological and medical field.
Main Specification:
| Specification | Standard Equipment | Optional Accessories |
| Model | NSZ-810 | |
| Theory | Stereo Microscope | |
| Drawing tube | Binocular head,20° inclination | Tilting Binocuar head,0~35° inclination |
| Interpupilary distance | 55-75mm | |
| Working distance | 78mm | |
| Eyepiece | EW10X/22mm | EW15X/16mm; EW20X/12mm |
| Objective | Plan Achromatic Objective 1X | Plan Achromatic Objective 0.5X Plan Achromatic Objective 2X Plan Achromatic Objective 0.3X |
| Zoom Objective | 0.8x~8x | 0.8x~6.4x; 0.8x~5x |
| Zoom Ratio | 1:10 | 1:6; 1:8 |
| Focusing | Focusing Range 105mm | |
| Illumination | Transmission or Reflection LED Illumination Brightness Adjustable | Coaxial Illumination |
