  • ICM-100BD Industry Checking and Measure Microscope

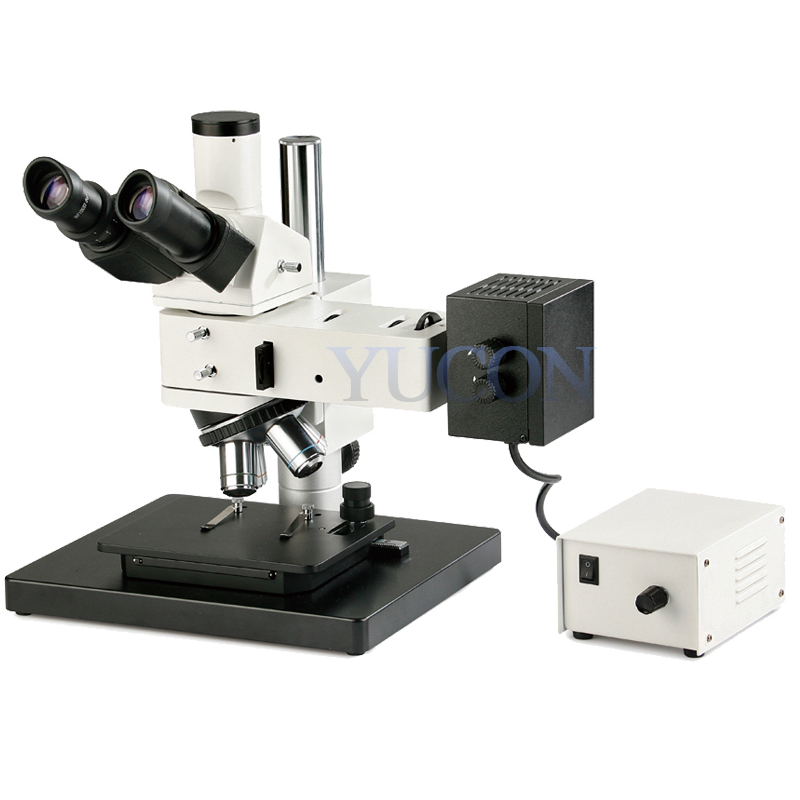

ICM-100BD Industry Checking and Measure Microscope

Model: ICM-100

            ICM-100BD

Accessories: Standard

ICM-100/ICM-100BD Industry checking and measure microscope are suitable to observe surfaces and geometry of workpiece.

The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material ect.

1.       It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation.

2.       Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece.

3.       Quickly and effectively locate the observation part of workpiece by moving the mechanical stage


Specification

Eyepiece

Wide field WF10X(field number Φ22mm)

Infinity plan   achromatic objective

ICM-100

(Equipped with bright field objective)

PL L5X/0.12  working distance:26.1 mm

PL L10X/0.25  working distance:20.2 mm

PL L20X/0.40  working distance:8.80 mm

PL L50X/0.70  working distance:3.68 mm

ICM-100BD

(Equipped with bright & dark field objectives)

PL L5X/0.12  BD  working distance:9.70 mm

PL L10X/0.25 BD  working distance:9.30 mm

PL L20X/0.40 BD working   distance:7.23mm

PL L50X/0.70 BD  working distance:2.50 mm

Eyepieces tube

Trinocular inclined 30˚, can be shot in 100% light flux

Epi-   illumination system

ICM-100

12V30W halogen lamp,brightness adjustable

ICM-100BD

12V50W halogen lamp,brightness adjustable

Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching advice. Push-pull analyzer and polarizer

Focus system

Coaxial coarse/fine focus system with tension adjustable and low stop, minimum division of fine focusing:1μm。

Nosepiece

Quintuple (Backward ball bearing inner locating)

Stage

Base overall size:300mmX240mm

Mechanical stage overall size:185mmX140mm,moving range:Transersal 35mm,Longitudinal 30mm



Optional   Accessory

Eyepiece

Dividing eyepiece 10X(Φ22mm)

Objective

ICM-100

40X、60X、80X、100X(Dry) bright field objective

ICM-100BD

40X、60X、80X、100X bright & dark field objectives

CCD adapter

0.4X、0.5X、1X、0.5X with dividing

Camera

USB output:130/200/300MP/pixel

VIDEO output:380/520 TV line

Digital camera adapter

CANON(EF) NIKON( F)
